Gwm Tank 300 Adjustable Shock Absorbers

Name: Gwm Tank 300 Adjustable Shock Absorbers
Brand: GWM
Price: 806 SAR
Availability: InStock

ريال 1,171.00 SAR

ريال 1,522.00 SAR

Save ريال 351.00 SAR

Shipping fees will be calculated at checkout.

Car Model

Haval H5 Haval H6 Haval H7 Haval H9 Gwm Tank 300 Gwm Tank 500

functionality

Original height Soft and hard adjustable height increase 6.5cm

Quantity

Features & Benefits

High-Strength Materials: Premium alloy steel and aviation aluminum construction ensures exceptional durability and stability in extreme driving conditions, extending service life and enhancing safety.
Advanced Oil Seal Technology: Double-layer German-imported oil seal design effectively prevents oil leakage, maintaining consistent performance and preventing degradation over time.
Integrated Cylinder Design: Optimized shock absorption efficiency disperses impact forces effectively, keeping the vehicle body stable and reducing bump sensation on rough terrain.
Customized Spring Options: Wide range of spring rates available for each model ensures perfect suspension system matching, delivering optimal support and improved handling performance.
Non-Destructive Installation: Original position mounting design requires no vehicle modifications, enabling quick and easy installation with minimal downtime.

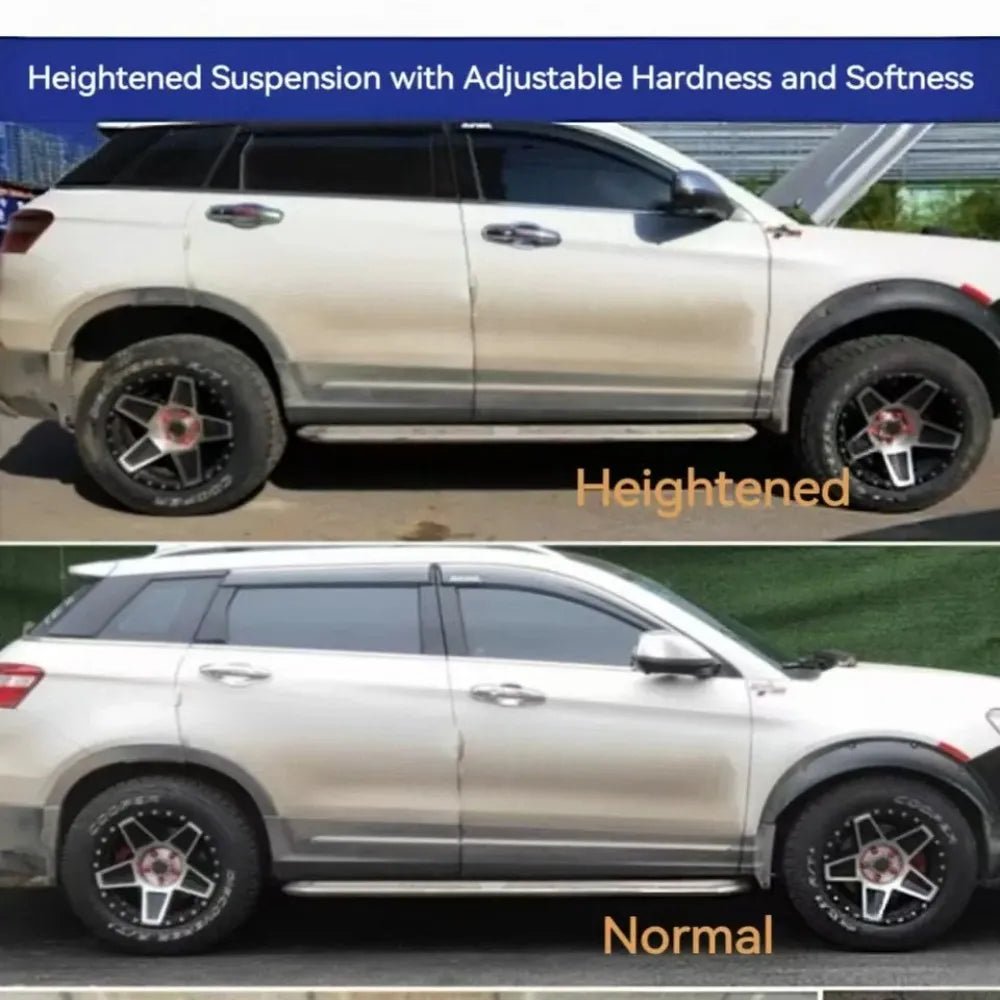

Adjustable Height & Damping: Soft and hard adjustable suspension with up to 6.5cm height increase and tunable damping force allows personalized driving comfort and performance tuning.

What's Included

1x Adjustable Shock Absorber (Haval H5), 1x Adjustable Shock Absorber (Haval H6), 1x Adjustable Shock Absorber (Haval H7), 1x Adjustable Shock Absorber (Haval H9), 1x Adjustable Shock Absorber (GWM Tank 300), 1x Adjustable Shock Absorber (GWM Tank 500), 1x Adjustment Wrench, 1x Hardware Kit

Product Gallery

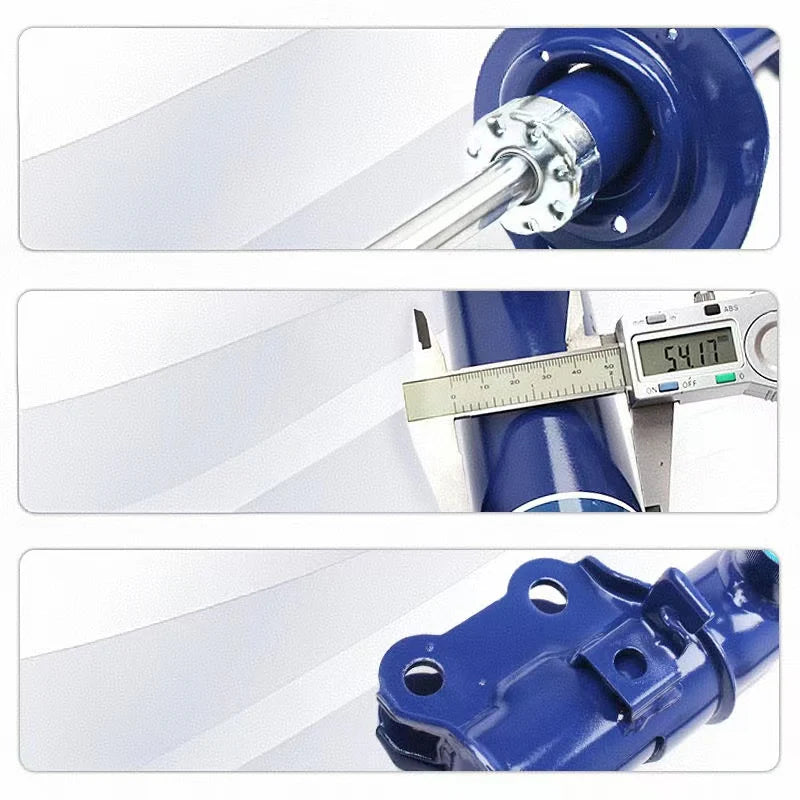

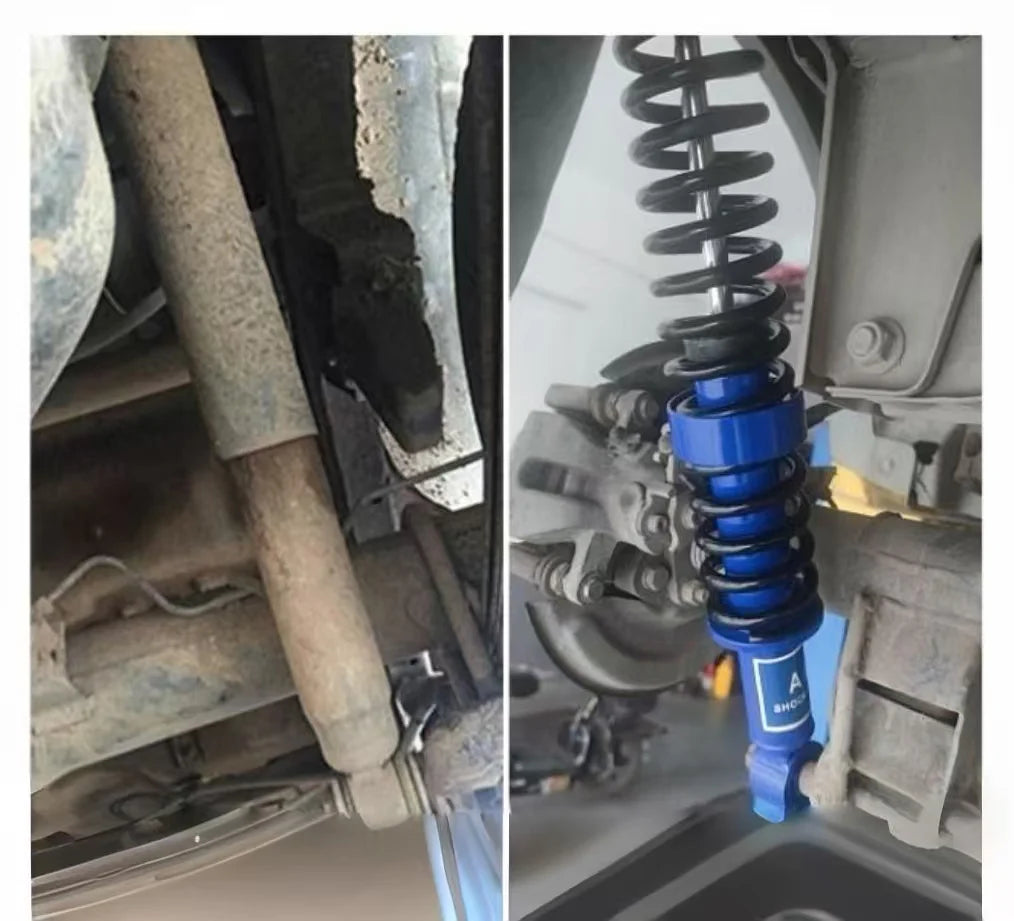

Gwm Tank 300 Adjustable Shock Absorbers Detail

Installation Guide

Total time

2-3 hours

Drilling required

No - bolt-on

Warranty

Yes - non-invasive

Safely Lift Vehicle Raise the vehicle securely on a lift or jack stands and remove the wheels to access the shock absorber assemblies.
Clear Blocking Components Carefully detach any components obstructing access, such as ABS sensor harnesses or brake line clips, handling them gently to prevent damage.
Remove Original Shocks Unscrew the top securing nut and lower retaining bolt/nut, then extract the original shock absorber assembly from the mounting points.
Position New Assembly Install the new adjustable shock absorber, ensuring correct orientation according to product markings and factory specifications.
Secure Mounting Points Tighten the top nut first (do not fully tighten initially), then attach and secure the lower portion to factory-specified torque settings.
Adjust Height Settings Use the provided special wrench to adjust the spring seat or lower tray, ensuring identical height on both left and right sides before locking the retaining ring.
Tune Damping Force Turn the adjustment knob to set your preferred damping level—clockwise increases stiffness, counterclockwise decreases it—ensuring consistent settings across all shocks.
Reinstall Components Reattach all peripheral clips and harnesses, reinstall wheels with proper torque specifications, and lower the vehicle to the ground.
