Name: GWM TANK 300 400 Split Off-Road Tow Hook with Shackle
Brand: GWM
Price: 6693 THB
Availability: InStock

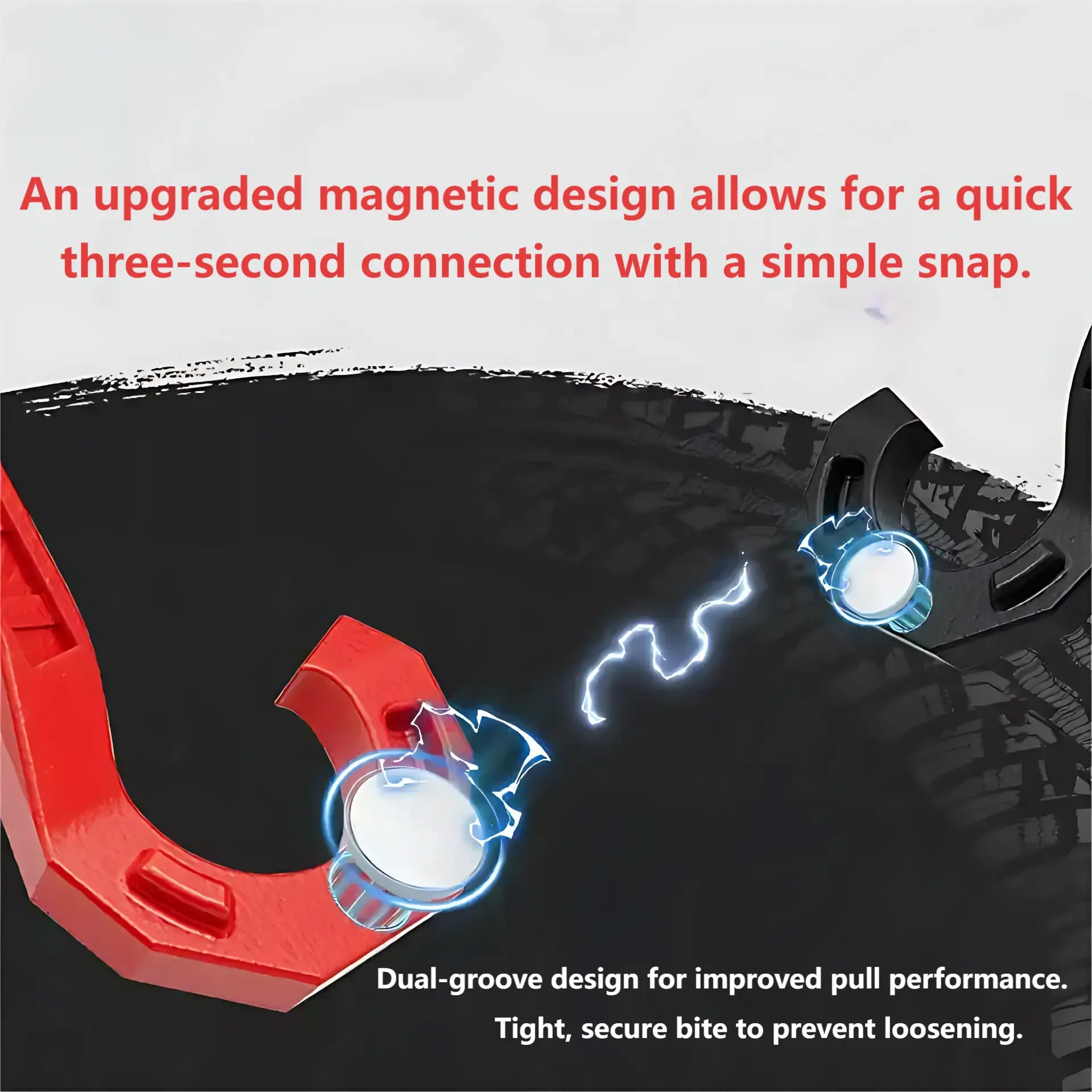

Magnetic Quick Connection: Innovative magnetic design enables secure one-handed connection in just 3 seconds, dramatically speeding up towing and rescue operations.

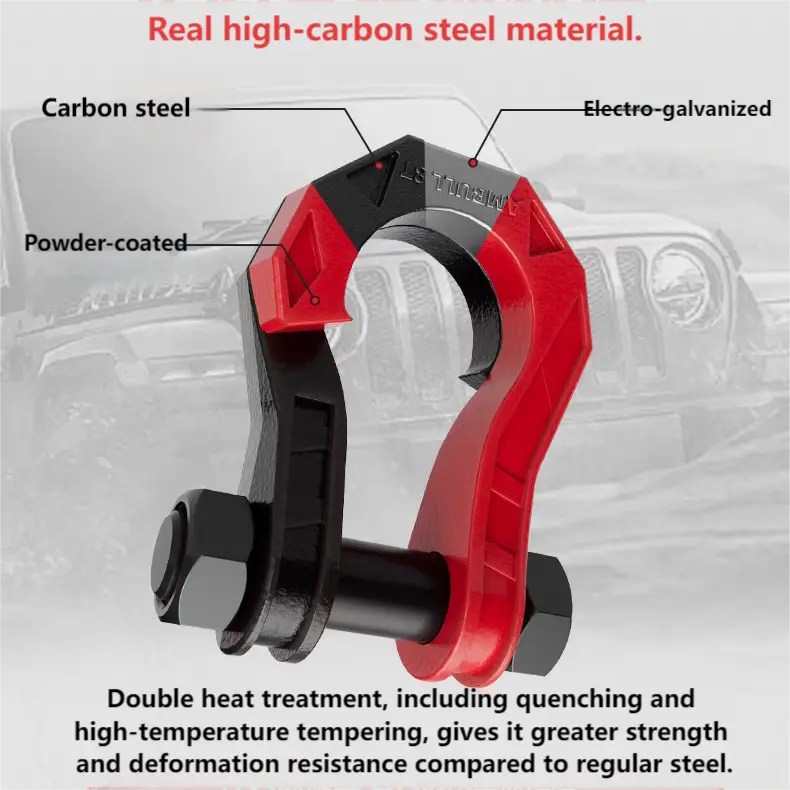

Premium Durability: Constructed from high-carbon steel with upgraded electroplating and powder-coat finish for superior corrosion resistance and long-term reliability.

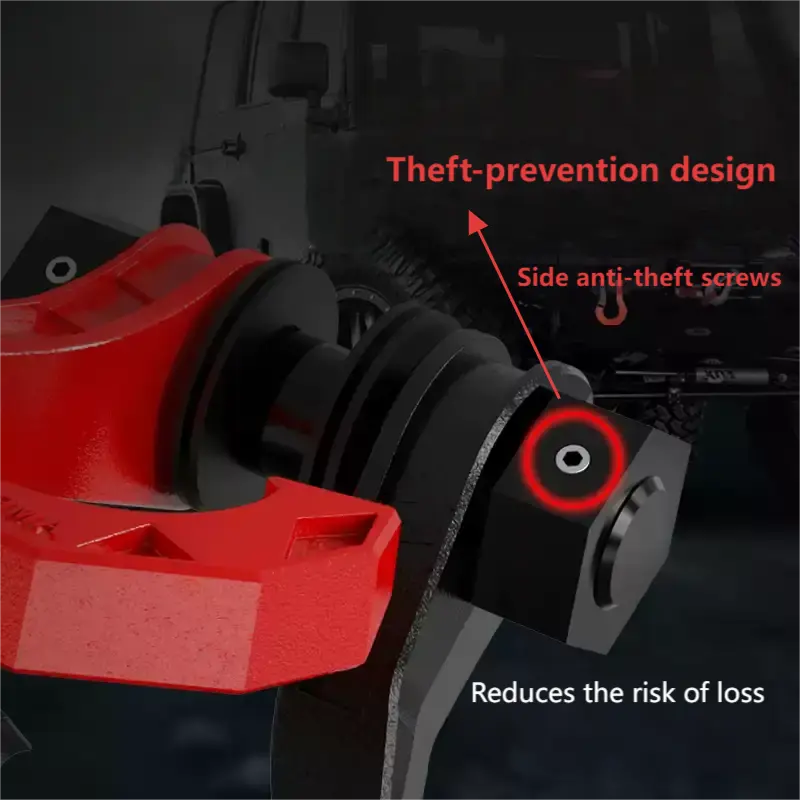

Anti-Theft Security: Unique anti-theft design with side anti-theft screws prevents loss and provides added peace of mind during off-road adventures.
Dual-Groove Secure Fit: Dual-recessed groove design ensures a tight, wobble-free connection that enhances pulling performance and stability.
Non-Destructive Installation: Perfect fit design allows installation without drilling or damage to your vehicle, requiring no professional tools.
30-Ton Breaking Force: Pair-pack rated for 30-ton tensile strength with 50mm square mouth connection compatibility for maximum towing capacity.
All-Terrain Capability: Built to handle snow, desert, mountains, mud, and emergency situations across multiple challenging environments.

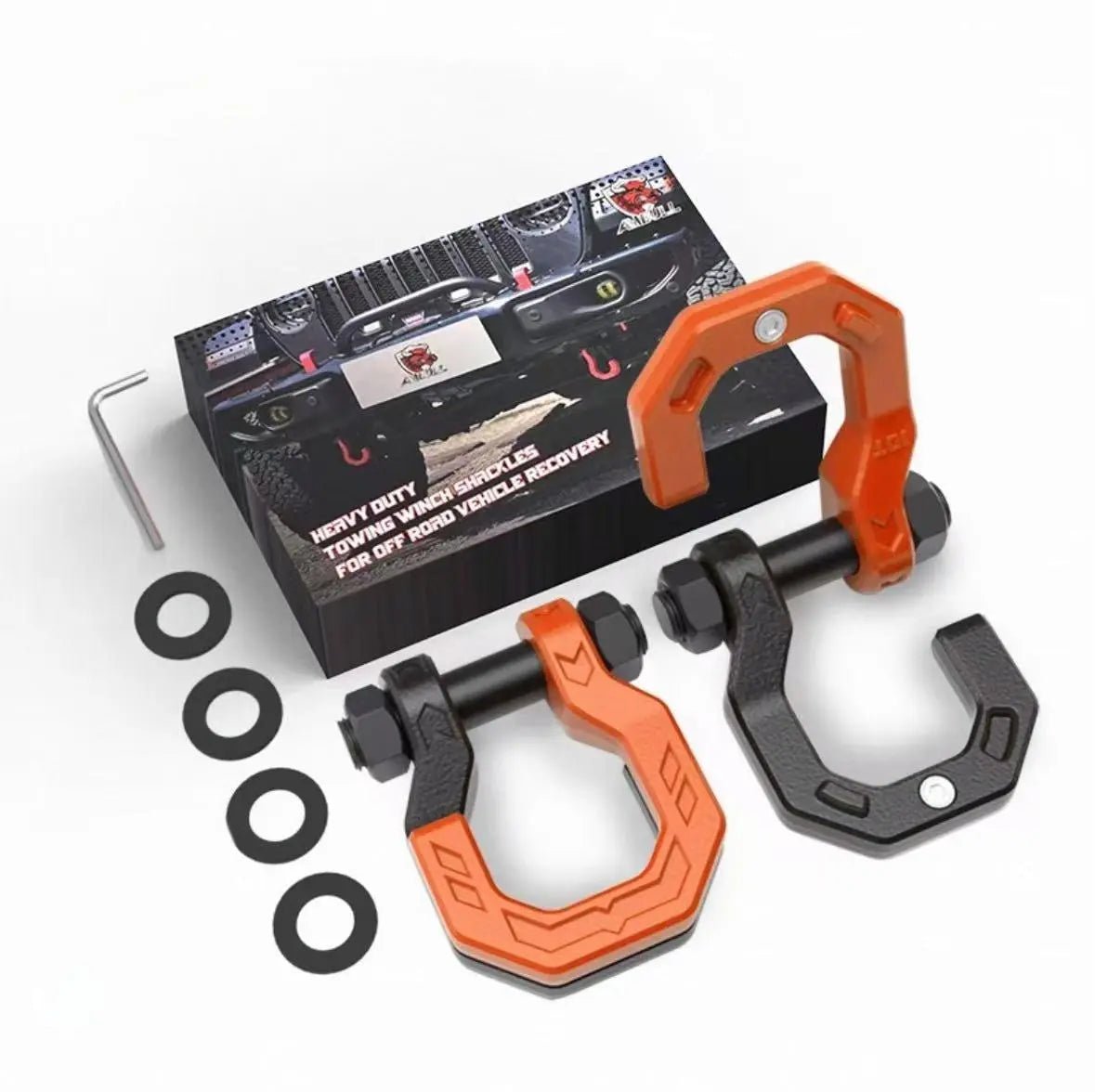

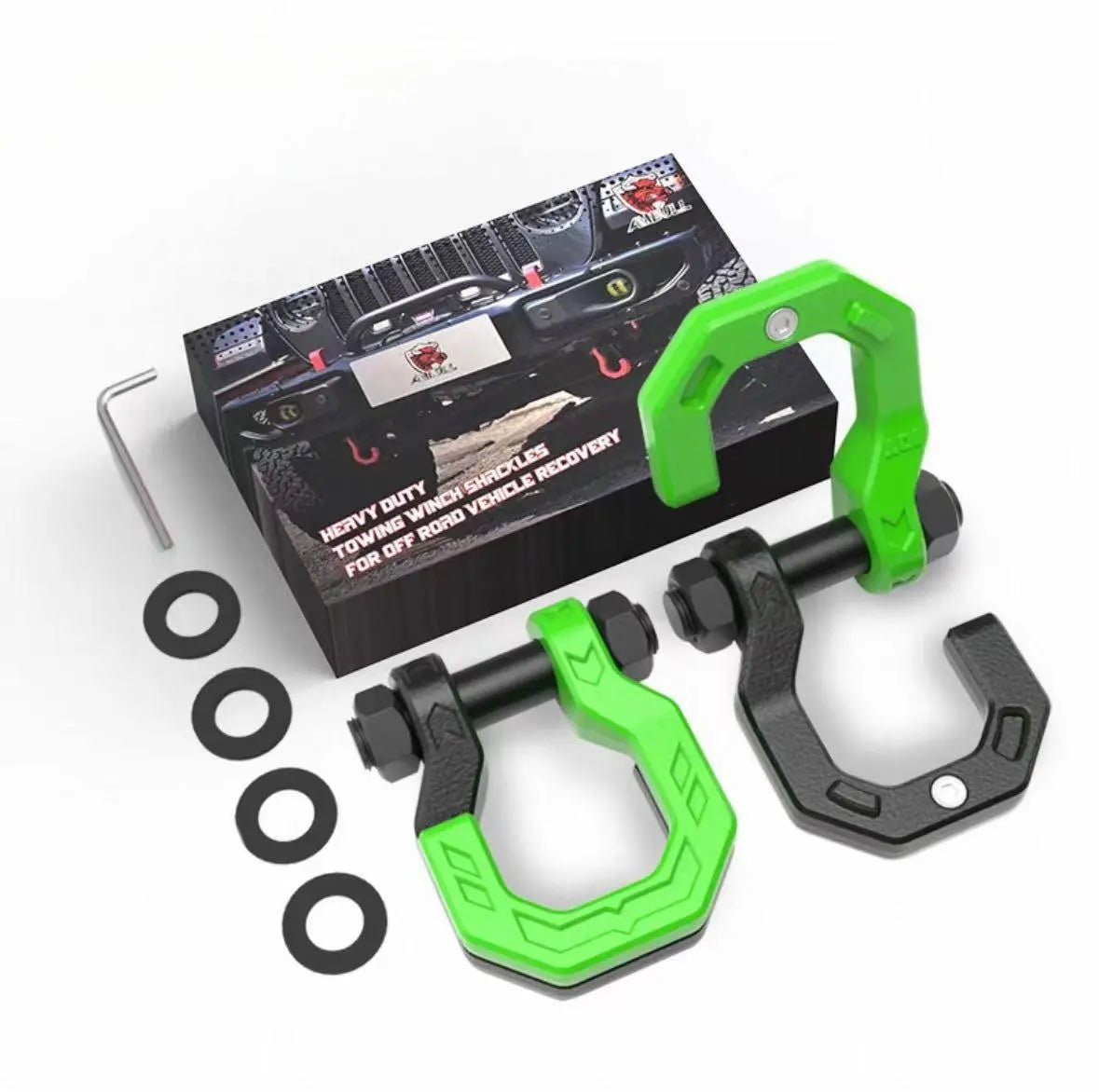

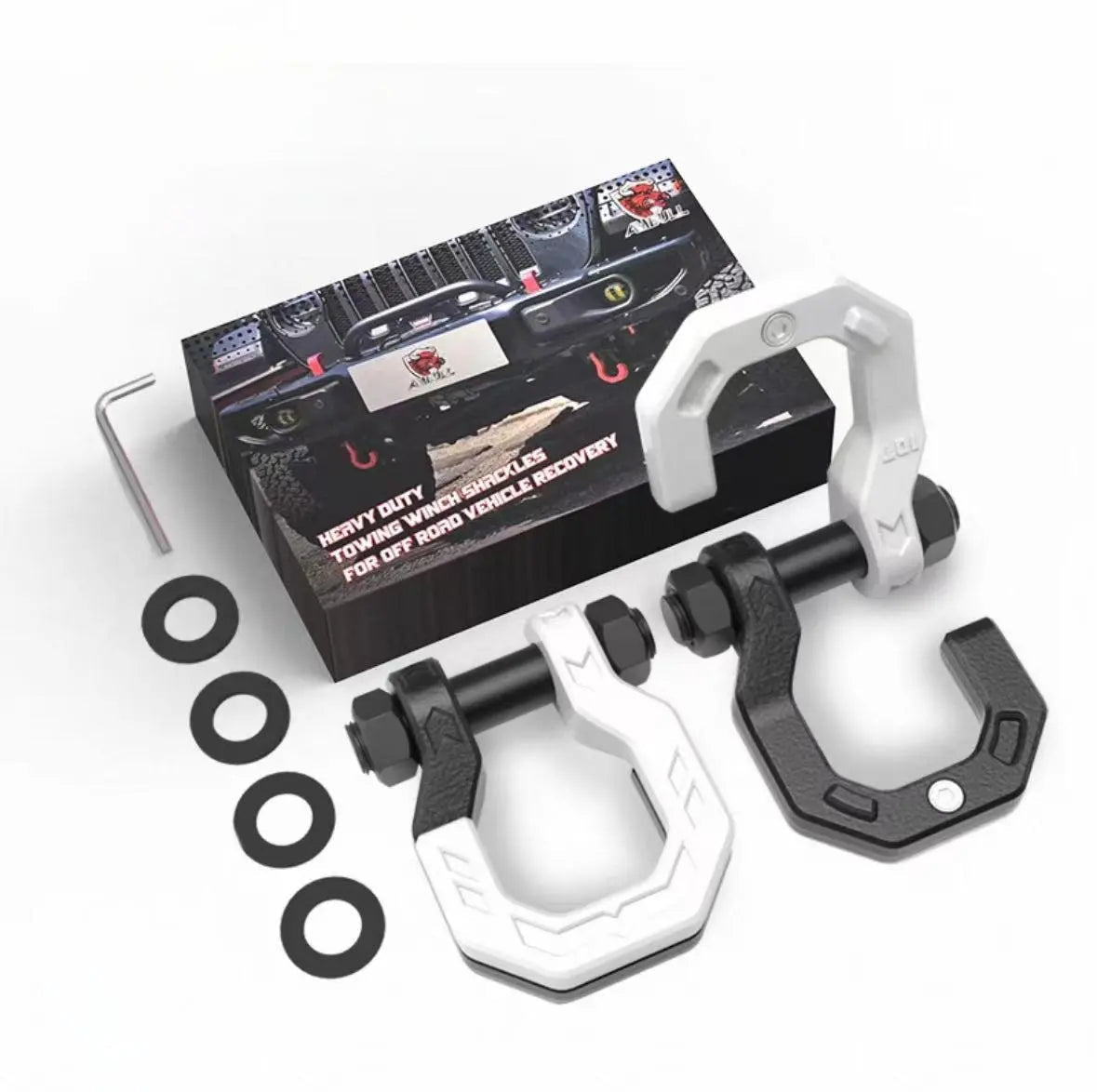

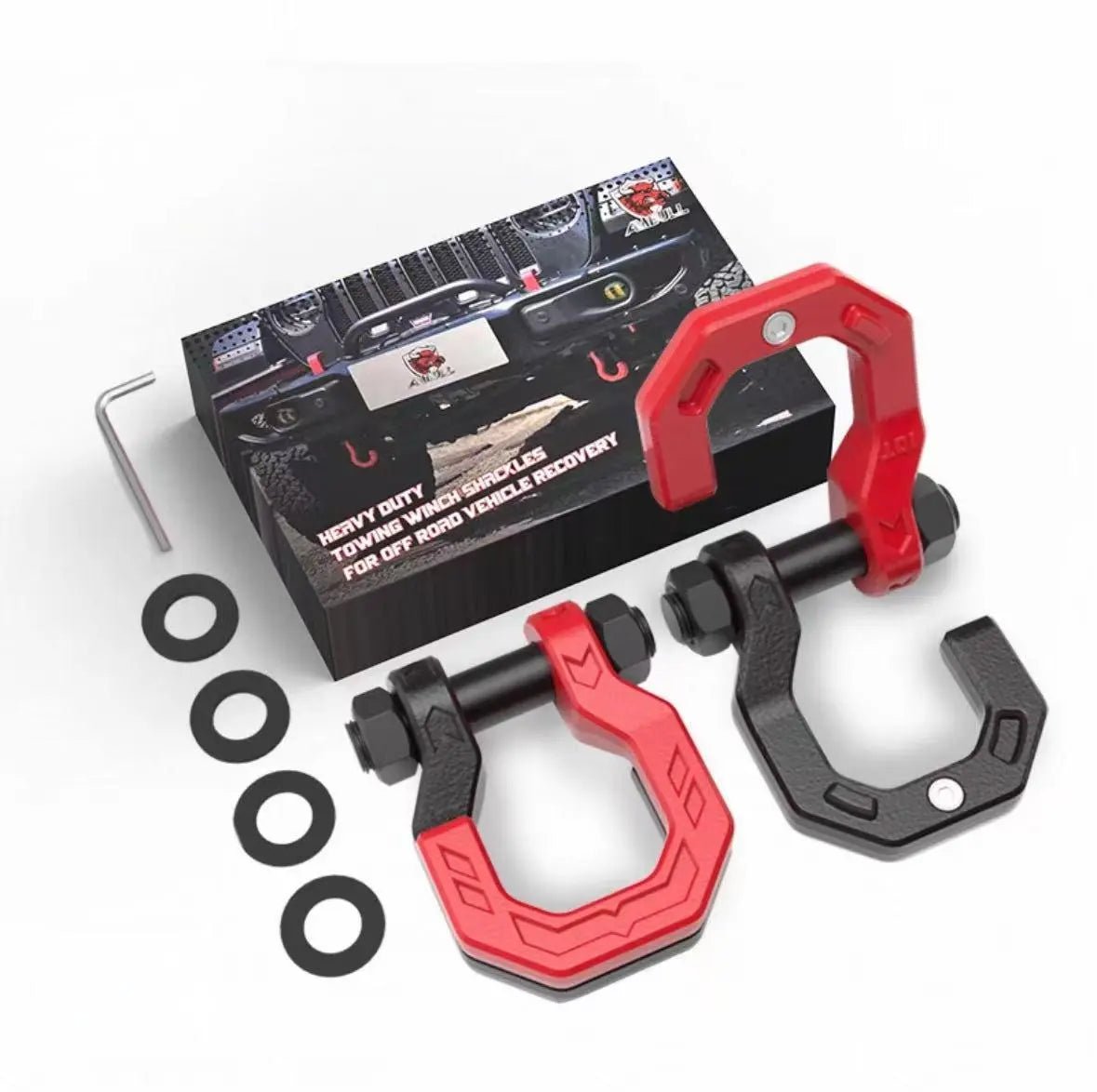

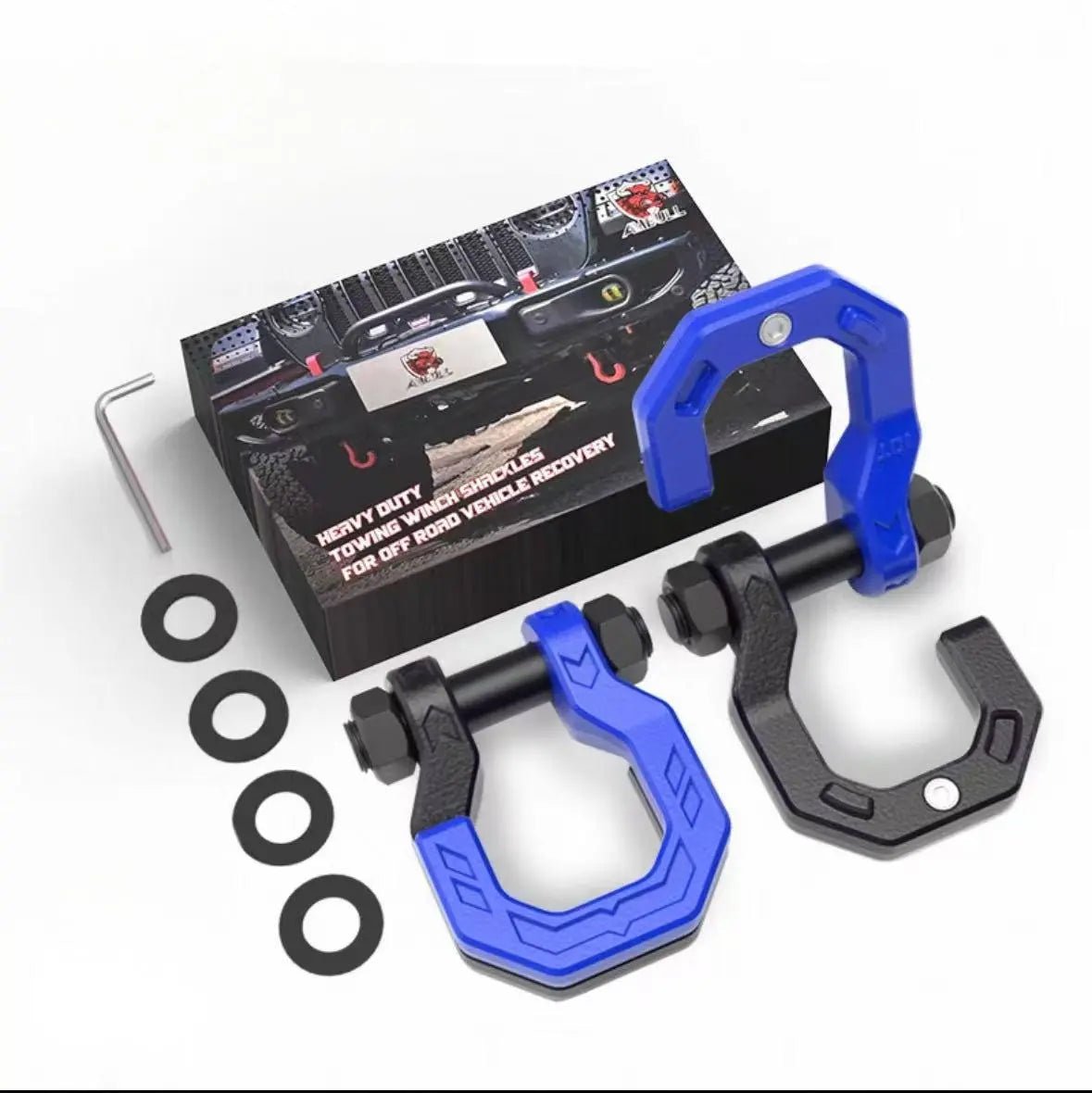

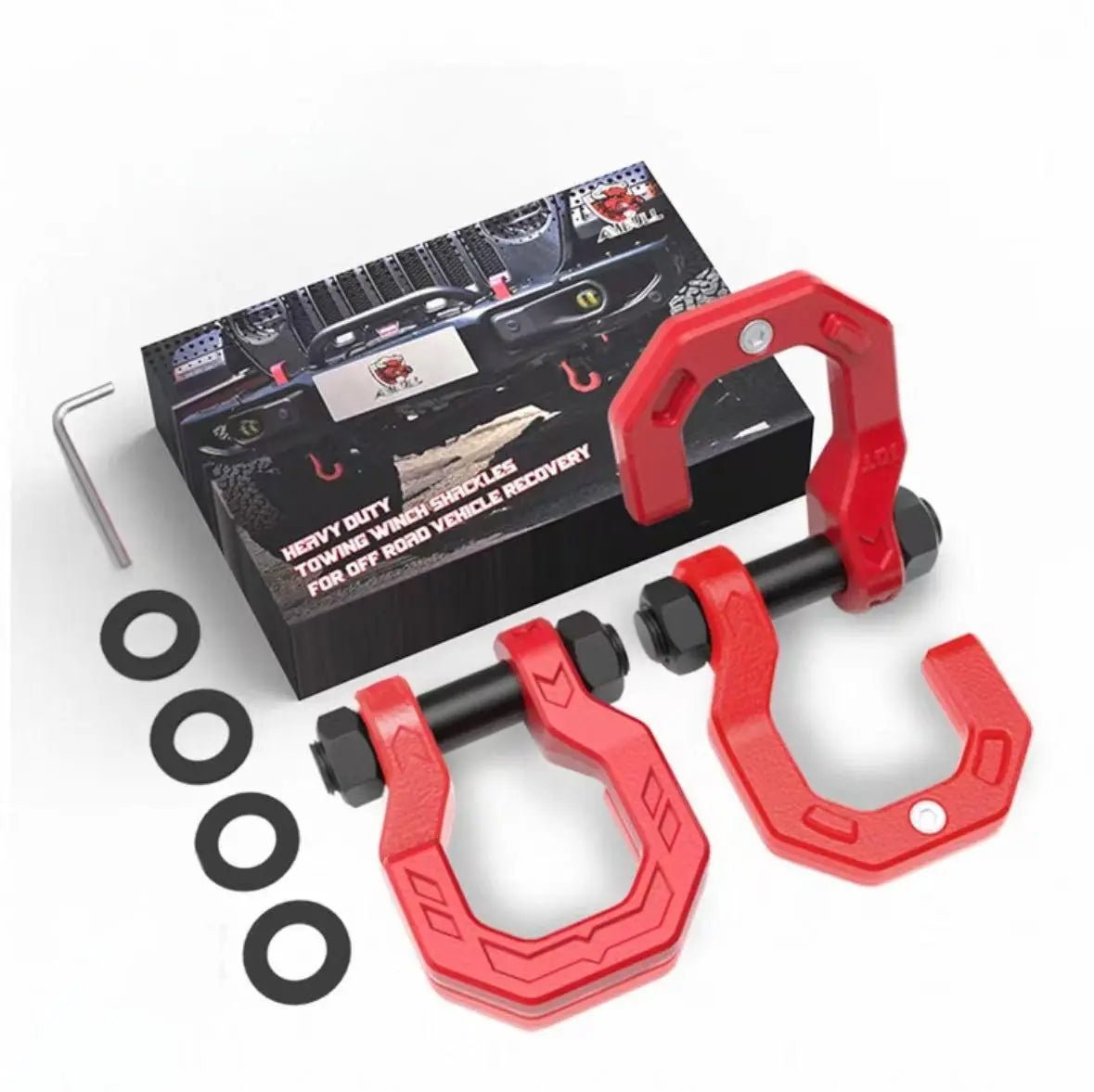

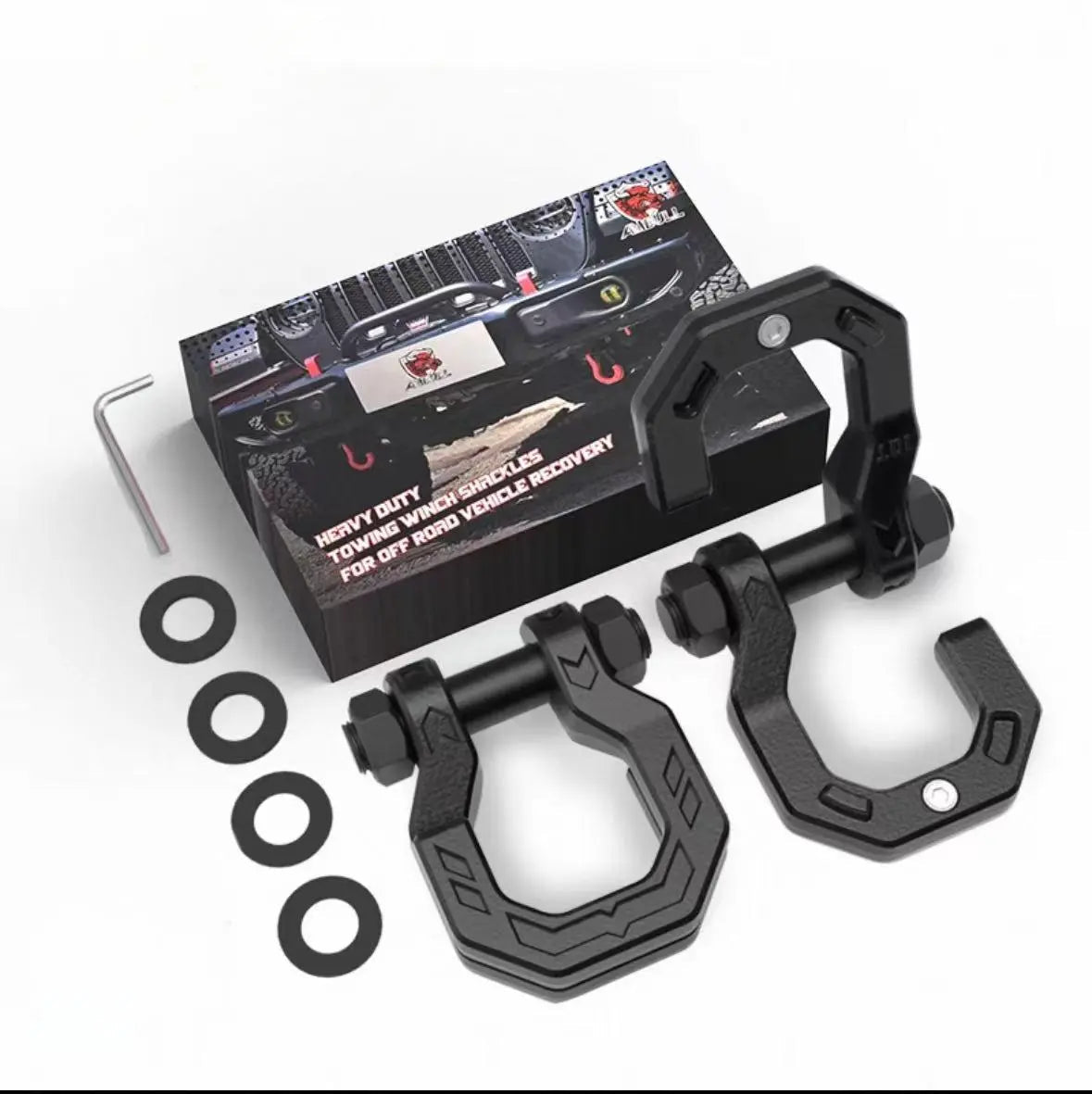

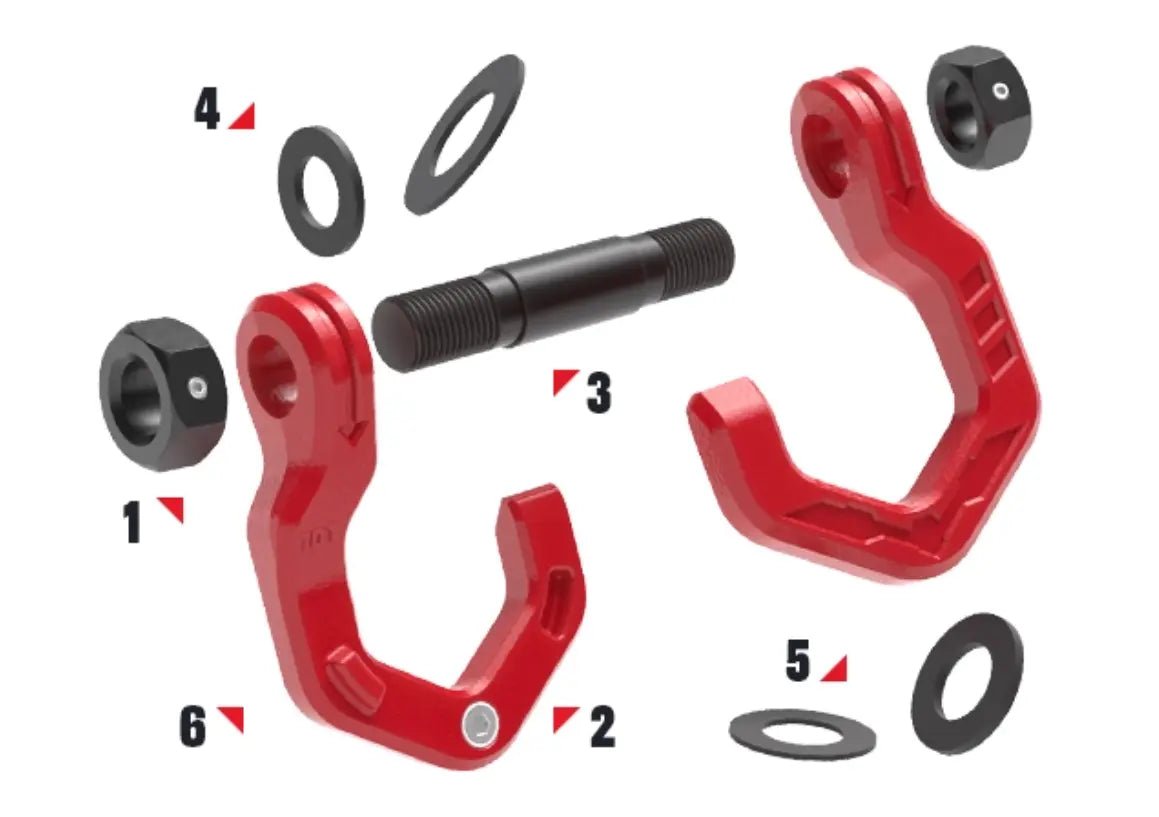

2x Connecting screw rod, 2x Split shackle, 4x Nut, 4x Rubber washer (thick), 4x Rubber washer (thin), 4x Anti-theft screw, 2x Hex key

Installation Guide

Total time

20-30 minutes

Drilling required

No - bolt-on

Warranty

Yes - non-invasive

Locate Tow Hook Hole Find the factory-reserved tow hook hole at the rear of your vehicle, typically located under the bumper. No drilling is required due to the non-destructive installation design.
Insert Main Tow Arm Insert the main body of the tow arm (connecting screw rod with threads) into the tow hook hole until it seats properly.
Secure with Fasteners From the opposite side, place rubber washers and nuts onto the screw rod. The rubber washers prevent loosening and paint damage. Use a wrench to tighten the nuts securely.
Align Split Shackle Align the male and female parts of the split shackle with the connecting holes at the front of the tow arm, allowing the double-groove design to form a tight bite.
Activate Magnetic Connection Gently push the shackle parts together to achieve the 3-second magnetic quick connection.
Install Anti-Theft Screw Locate the side anti-theft screw hole and use the included hex key to screw in the anti-theft screw, securing against loss.
Perform Final Inspection Verify all components are securely installed, the anti-theft screw is tightened, and the tow arm and shackle are stable with no looseness or abnormal noise.
