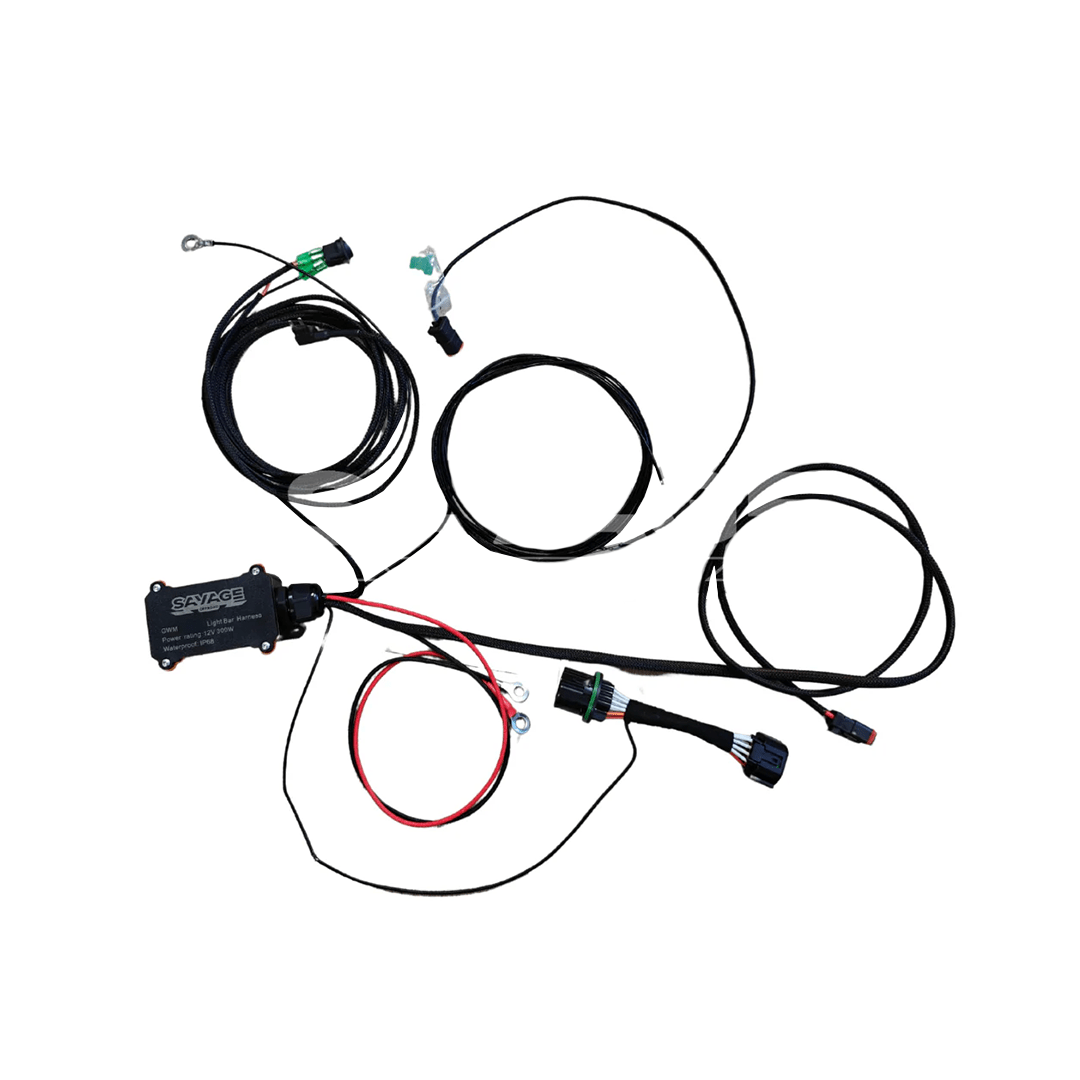

The light bar harness is full plug and play designed to run our 32" light bar on our noxfun platform and 22" light bar on our Armour bulbar as it has 2x Deutsch connections. Maximum amp draw is 25amp.
Please note we highly recommend the complete kit.
Will include 2x piggyback harness as below 👇
Comes with internal relay ip68 rated housing
The piggyback harness is included and will give you the following outputs for bulbar install.
If you need to install bulbar please purchase the piggyback harness and relay box.
1- Negative trigger for high beam
2- Trigger for blinkers
3- Trigger for DRL
4- Trigger for parkers
5- Trigger for negative
No splicing into factory harness is needed when using these colour coded for ease of installation.
🎯 Designed for Bull bar Lighting Installs
Each harness includes 5 colour-coded output wires:
🔘 Grey – High Beam (Negative Trigger)
Perfect for triggering spotlights or a light bar.
🟡 Yellow – Blinker (Indicator Trigger)
Use for bullbar-mounted turn signals.
🔵 Blue – DRL (Daytime Running Light Trigger)
Easily power your DRLs.
🟢 Green – Parker (Position Light Trigger)
Great for connecting bullbar parkers or side markers.
⚫ Black – Negative (Earth)
Shared ground for connected accessories.
✅ Features:
Plug-and-play install – no splicing or cutting required
Built specifically for All GWM Cannon models
Makes bullbar light wiring fast, simple, and clean
Recommended: 1 harness per side if installing lights on both sides
Colour-coded wiring for easy identification
Clean, factory-style finish
