Gwm Cannon Double Roller Trunk Drawer

Name: Gwm Cannon Double Roller Trunk Drawer
Brand: GWM
Price: 2400 USD
Availability: InStock

$2,400.00 USD

Shipping fees will be calculated at checkout.

Size

Gwm Cannon standard trunk Gwm Cannon prolonged trunk

Quantity

Precision Vehicle-Specific Fitment: Custom-engineered for the GWM Cannon tub, delivering a flush, zero-gap professional look that maximizes storage space without requiring modifications.
Heavy-Duty Reinforced Steel Construction: Built with 1.5mm powder-coated galvanized steel frame and 1.2mm drawer bodies for superior structural integrity under heavy loads and off-road vibrations.
Industrial-Grade Bearing System: High-performance stainless steel roller bearings enable smooth, effortless operation even when loaded to the maximum 100kg per drawer capacity.

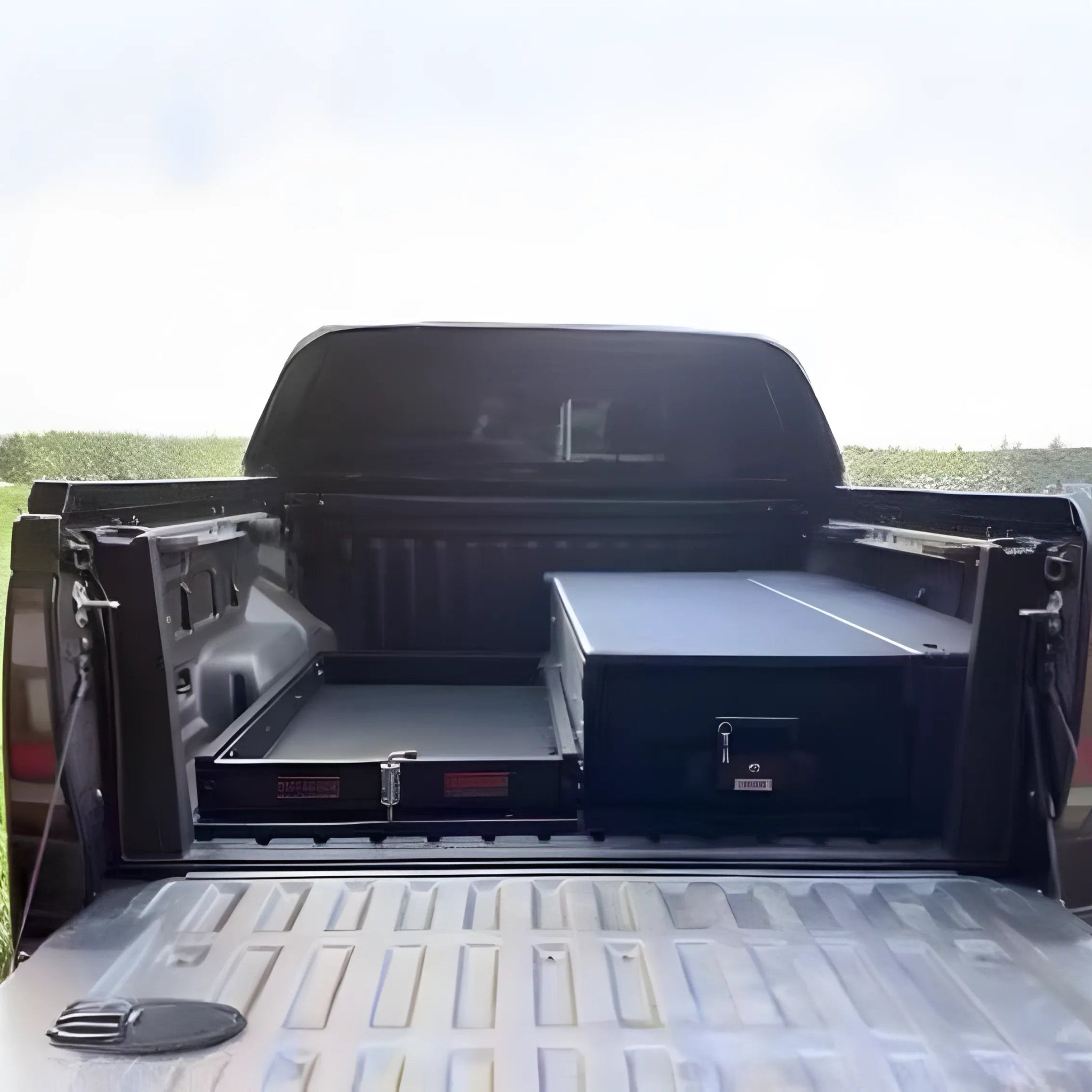

Integrated Fridge Slide: Built-in sliding top on one side allows you to mount and access your fridge or freezer without additional expensive accessories.

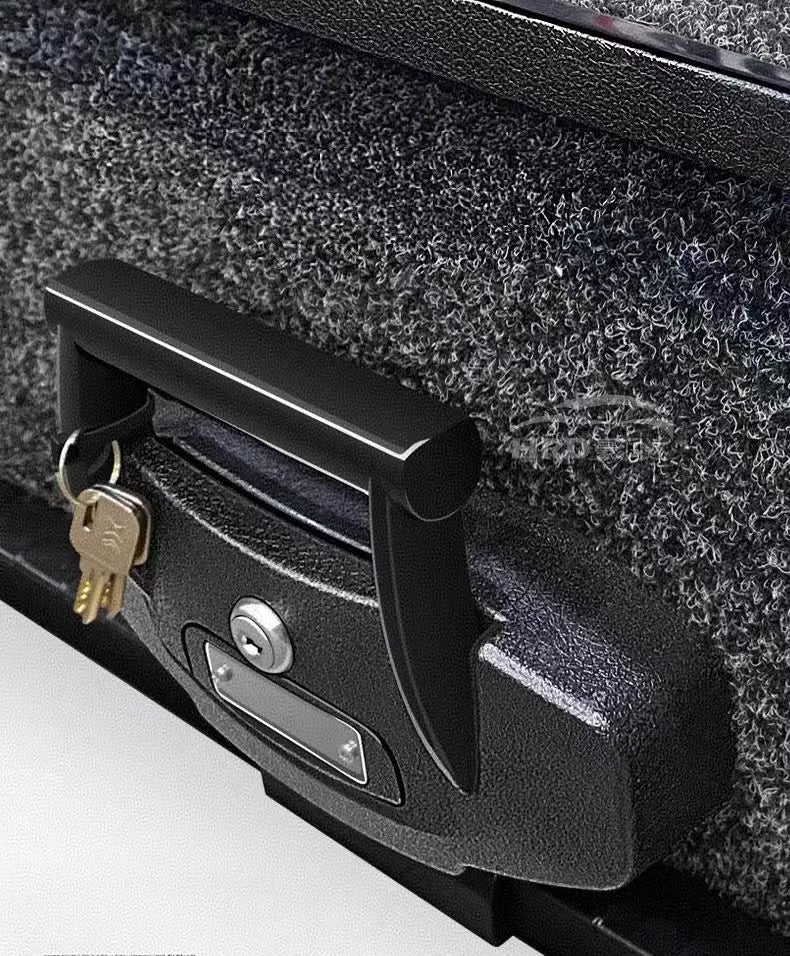

Advanced Security Mechanism: Key-lockable handles with anti-rollback locking system protect your valuable gear from theft and prevent drawer movement on steep inclines.
Weather-Resistant Finish: Premium corrosion-resistant powder coat in modern Nardo Grey protects the metal from humidity and dust while matching the GWM Cannon's rugged interior aesthetic.
No-Drill Installation: Utilizes factory tie-down points with no permanent modifications required, preserving your vehicle's resale value and warranty coverage.

1x Main drawer frame, 2x Drawer units, 2x Side wing panels, 1x Fridge slide assembly, 1x Mounting hardware kit, 2x Security keys

Installation Guide

Total time

60-90 minutes

Drilling required

No - bolt-on

Warranty

Yes - non-invasive

Prepare the Tub Ensure the vehicle tub is clean and empty. If a plastic tub liner is installed, remove or modify it to allow the drawer frame to sit flush on the metal bed.
Unpack and Verify Carefully unbox the drawer system and verify all components including the main frame, two drawer units, side wing panels, and the mounting hardware kit.
Remove Factory Tie-Downs Unscrew the factory-fitted tie-down points in the GWM Cannon tub. These bolt holes will serve as the primary anchoring points for the drawer frame.
Position the Main Frame With assistance, lift the main drawer frame into the tub and slide it forward towards the cabin until it is centered and aligned with the factory bolt holes.
Secure Mounting Brackets Align the provided heavy-duty brackets with the factory holes and loosely thread the bolts through the frame into the tub floor. Once perfectly centered, tighten all bolts securely.
Install Side Wing Panels Attach the vehicle-specific wing kits to the sides of the frame. These panels fill gaps between the drawers and wheel arches, providing a flat top surface across the entire tub.
Insert and Test Drawers Slide the drawer units onto the roller tracks and test the sliding mechanism multiple times to ensure the bearings are seated correctly and the locking system engages at full extension.
Final Inspection Ensure the handles lock correctly with the keys and the fridge slide operates smoothly. Re-tighten any hardware if necessary.
