Brembo XA8.U2.01 2-Piston Rear Big Brake Kit
Brembo Racing Division — Motorsport Grade
Upgrade your rear braking system with the Brembo XA8.U2.01. This 2-piston forged monobloc caliper delivers exceptional stopping power with even pad pressure distribution across all pistons, paired with RH rotors and Endless MX72 / Winmax W615 for a complete bolt-on big brake kit solution.
Complete Kit Includes
| Calipers | Brembo XA8.U2.01 — 2-Piston, Forged monobloc (pair) |
| Brake Discs | RH 2-piece floating rotors (300x32mm) |
| Brake Pads | Endless MX72 / Winmax W615 |
| Brake Lines | Goodridge stainless steel braided brake lines |
| Mounting Hardware | AME CNC-machined 7075-T6 aluminium bells & vehicle-specific brackets |
Caliper Specifications

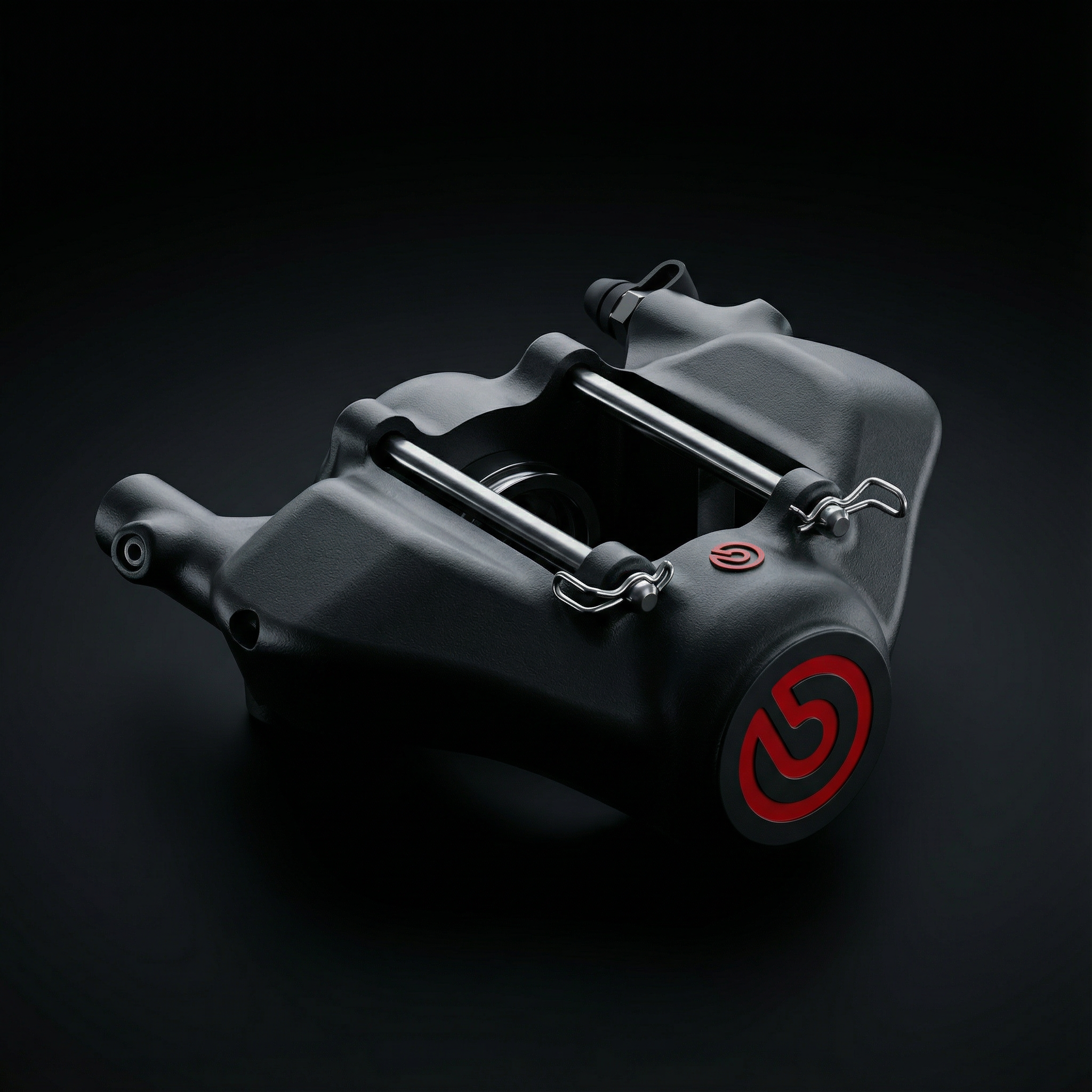

| Caliper Model | Brembo XA8.U2.01 |
| Position | Rear |
| Pistons | 2-Piston (Differential bore: 38mm) |
| Total Piston Area | 22.7 cm² |
| Weight (per caliper, no pads) | 1.0 kg |
| Construction | Forged monobloc |
| Material | Aluminum |
| Finish | Hard Anodized |
| Mounting | Radial |
| Compatible Disc Range | Up to 278mm |
| Pad Shape Code | N/A |
Engineering & Technology
The ultra-lightweight XA8.U2 at just 1.0 kg is designed specifically for rear axle applications where minimal unsprung mass is critical. Its forged monobloc construction ensures maximum stiffness-to-weight ratio.
Compatible Pad Compounds
Available pad options:
Brembo pad shape code: N/A — use this code when ordering replacement pads.
RH Disc & Pad Options
Brake Discs:
- RH — 2-piece floating rotor with CNC-machined 7075-T6 aluminium bell
Brake Pads:
Custom Brake Solutions
At AME MOTORSPORT, we design and manufacture adapters for virtually every vehicle make and model. All our brake kits are engineered for direct bolt-on fitment across a wide range of vehicles.
- AME CNC-machined 7075-T6 aluminium disc bells & vehicle-specific mounting brackets
- Steel brackets available on request for heavy-duty applications
- Goodridge stainless steel braided brake lines
- All necessary mounting hardware included
Brake discs can be customised with square-slot pattern and full-floating conversion. Please contact us for consultation.
Need a different disc size, pad compound, or custom bracket solution? Contact us to discuss your specific requirements.
Warranty
| Brake Calipers | 1-year warranty against manufacturing defects |
| Brake Discs & Pads | Wear components — not covered under warranty |
| Defect Coverage | Includes cracking, material separation, or other failures without external force. Normal wear and damage from misuse are excluded. |
Lead Time: Approximately 5–14 business days.
