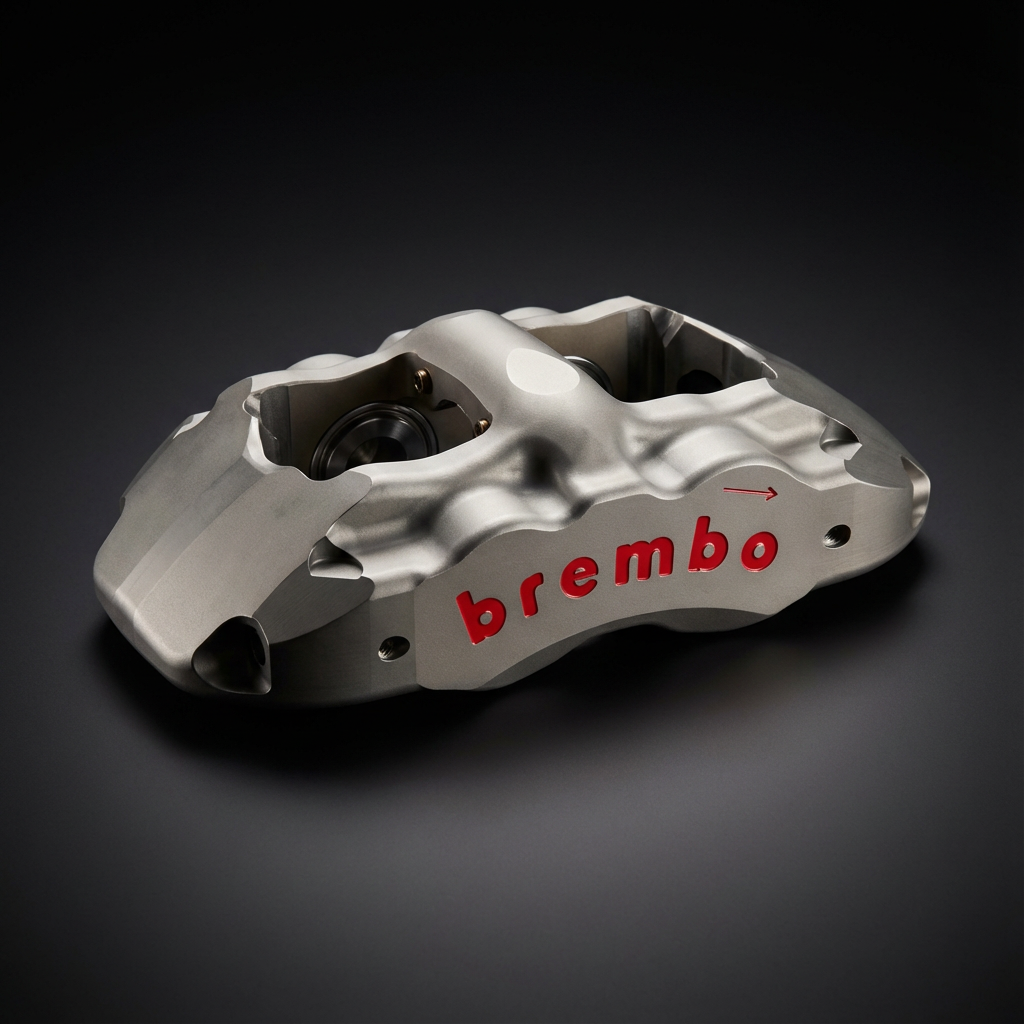

Brembo XA5.T0.01/02 4-Piston Front Big Brake Kit
Brembo Racing Division — Motorsport Grade
Upgrade your front braking system with the Brembo XA5.T0.01/02. This 4-piston forged monobloc caliper delivers exceptional stopping power with even pad pressure distribution across all pistons, paired with RH rotors and Endless MX72 / Winmax W615 for a complete bolt-on big brake kit solution.
Complete Kit Includes
| Calipers | Brembo XA5.T0.01/02 — 4-Piston, Forged monobloc (pair) |
| Brake Discs | RH 2-piece floating rotors (355x32mm / 370x32mm / 380x32mm) |
| Brake Pads | Endless MX72 / Winmax W615 |
| Brake Lines | Goodridge stainless steel braided brake lines |
| Mounting Hardware | AME CNC-machined 7075-T6 aluminium bells & vehicle-specific brackets |
Caliper Specifications
| Caliper Model | Brembo XA5.T0.01/02 |
| Position | Front |
| Pistons | 4-Piston (Differential bore: 38/44mm) |
| Total Piston Area | 53.1 cm² |
| Weight (per caliper, no pads) | 2.7 kg |
| Construction | Forged monobloc |
| Material | Aluminum |
| Finish | Hard Anodized |
| Mounting | Radial |
| Compatible Disc Range | 300mm-355mm |
| Pad Shape Code | B18/B19 |
Engineering & Technology
The XA5.T0 delivers an impressive 53.1 cm² piston area from just 4 pistons (38/44mm), rivaling many 6-piston designs. Proven in World Rally Championship competition, its forged monobloc construction at 2.7 kg handles extreme thermal cycling with ease.
Compatible Pad Compounds
Available pad options:
Brembo pad shape code: B18/B19 — use this code when ordering replacement pads.
RH Disc & Pad Options
Brake Discs:
- RH — 2-piece floating rotor with CNC-machined 7075-T6 aluminium bell
Brake Pads:
Custom Brake Solutions
At AME MOTORSPORT, we design and manufacture adapters for virtually every vehicle make and model. All our brake kits are engineered for direct bolt-on fitment across a wide range of vehicles.
- AME CNC-machined 7075-T6 aluminium disc bells & vehicle-specific mounting brackets
- Steel brackets available on request for heavy-duty applications
- Goodridge stainless steel braided brake lines
- All necessary mounting hardware included
Brake discs can be customised with square-slot pattern and full-floating conversion. Please contact us for consultation.
Need a different disc size, pad compound, or custom bracket solution? Contact us to discuss your specific requirements.
Warranty
| Brake Calipers | 1-year warranty against manufacturing defects |
| Brake Discs & Pads | Wear components — not covered under warranty |
| Defect Coverage | Includes cracking, material separation, or other failures without external force. Normal wear and damage from misuse are excluded. |
Lead Time: Approximately 5–14 business days.
