Brembo Pista|FF4 4-Piston Front Big Brake Kit
Brembo Pista — Forged Racing-Grade

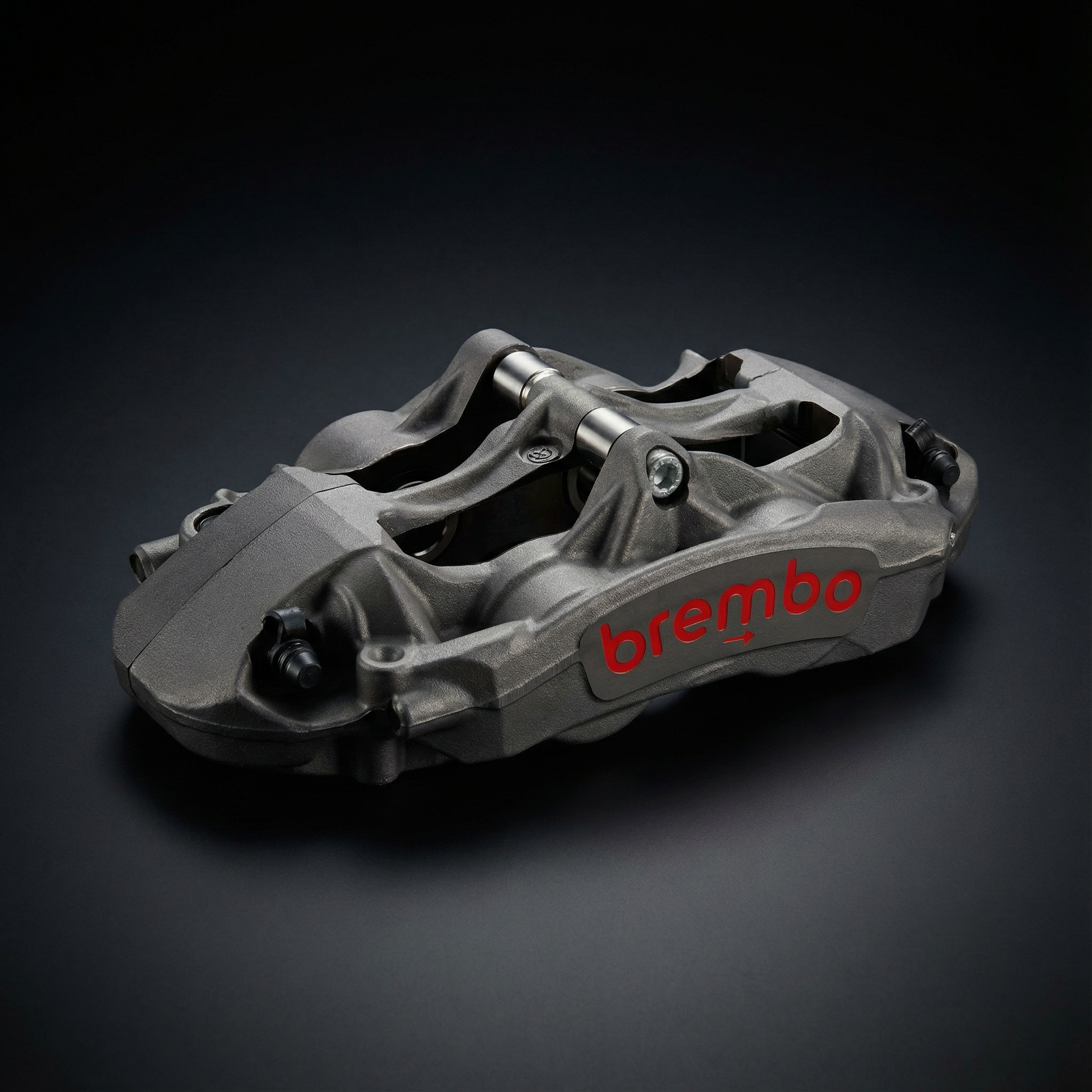

Upgrade your front braking system with the Brembo Pista|FF4. This 4-piston forged 2-piece with tangential bridge caliper delivers exceptional stopping power with even pad pressure distribution across all pistons, paired with RH rotors and Brembo HP2000 performance brake pads for a complete bolt-on big brake kit solution.
Complete Kit Includes
| Calipers | Brembo Pista|FF4 — 4-Piston, Forged 2-piece with tangential bridge (pair) |
| Brake Discs | RH 2-piece floating rotors (330x28mm / 345x28mm) |
| Brake Pads | Brembo HP2000 performance brake pads |
| Brake Lines | Goodridge stainless steel braided brake lines |
| Mounting Hardware | AME CNC-machined 7075-T6 aluminium bells & vehicle-specific brackets |
Caliper Specifications
| Caliper Model | Brembo Pista|FF4 |
| Position | Front |
| Pistons | 4-Piston (Differential bore: 36/42mm (front) / 28/30mm (rear)) |
| Total Piston Area | ~48.1 cm² (front) |
| Weight (per caliper, no pads) | ~2.7 kg (6 lb) |
| Construction | Forged 2-piece with tangential bridge |
| Material | Aluminum |
| Finish | Hard Anodized |
| Mounting | Radial |
| Compatible Disc Range | 315mm-330mm |
| Pad Shape Code | B52 family |
Engineering & Technology
The Pista|FF4 brings forged racing construction to a compact 4-piston package. Asymmetric body design with tangential bridge, 59 cm² pad area, and rapid pad release system (available on request). At ~2.7 kg, it's lighter than most cast 4-piston calipers while outperforming them.
Compatible Pad Compounds
Standard pad: Brembo HP2000
Brembo pad shape code: B52 family — use this code when ordering replacement pads.
RH Disc & Pad Options
Brake Discs:
- RH — 2-piece floating rotor with CNC-machined 7075-T6 aluminium bell
Brake Pads:
- Brembo HP2000 — Standard compound (other pad options available upon request)
Custom Brake Solutions
At AME MOTORSPORT, we design and manufacture adapters for virtually every vehicle make and model. All our brake kits are engineered for direct bolt-on fitment across a wide range of vehicles.
- AME CNC-machined 7075-T6 aluminium disc bells & vehicle-specific mounting brackets
- Steel brackets available on request for heavy-duty applications
- Goodridge stainless steel braided brake lines
- All necessary mounting hardware included
Brake discs can be customised with square-slot pattern and full-floating conversion. Please contact us for consultation.
Need a different disc size, pad compound, or custom bracket solution? Contact us to discuss your specific requirements.
Warranty
| Brake Calipers | 1-year warranty against manufacturing defects |
| Brake Discs & Pads | Wear components — not covered under warranty |
| Defect Coverage | Includes cracking, material separation, or other failures without external force. Normal wear and damage from misuse are excluded. |
Lead Time: Approximately 5–14 business days.
